1947-55
CHEVY TRUCK
The 1947-55 Chevy Truck TruMOD A/C Kit uses the Ultra-Compact Climate Control System with A/C & Heat with Infinite Blend between Dash, Defrost, and Floor. The Bantam-S A/C system is designed for a flat firewall installation and is the top of the line, the most stylish, most powerful, and toughest aftermarket A/C system.
TruMOD air conditioning kits are what we recommend for your vehicle. TruMOD Kits may have some model specific parts, but you have the ability to heavily customize your installation. TruMOD A/C Kits are designed for the vehicle that has a smoothed firewall. This allows the use of our multi-mount system for you to keep that perfectly smooth firewall using either the welded options for body phase or bolted options for completed (painted) cars.
Building your 1947-1955 Chevy Truck Trumod A/C kit is simple. All you have to do it choose your interior kit, condenser kit, optional compressor, and optional compressor bracket.

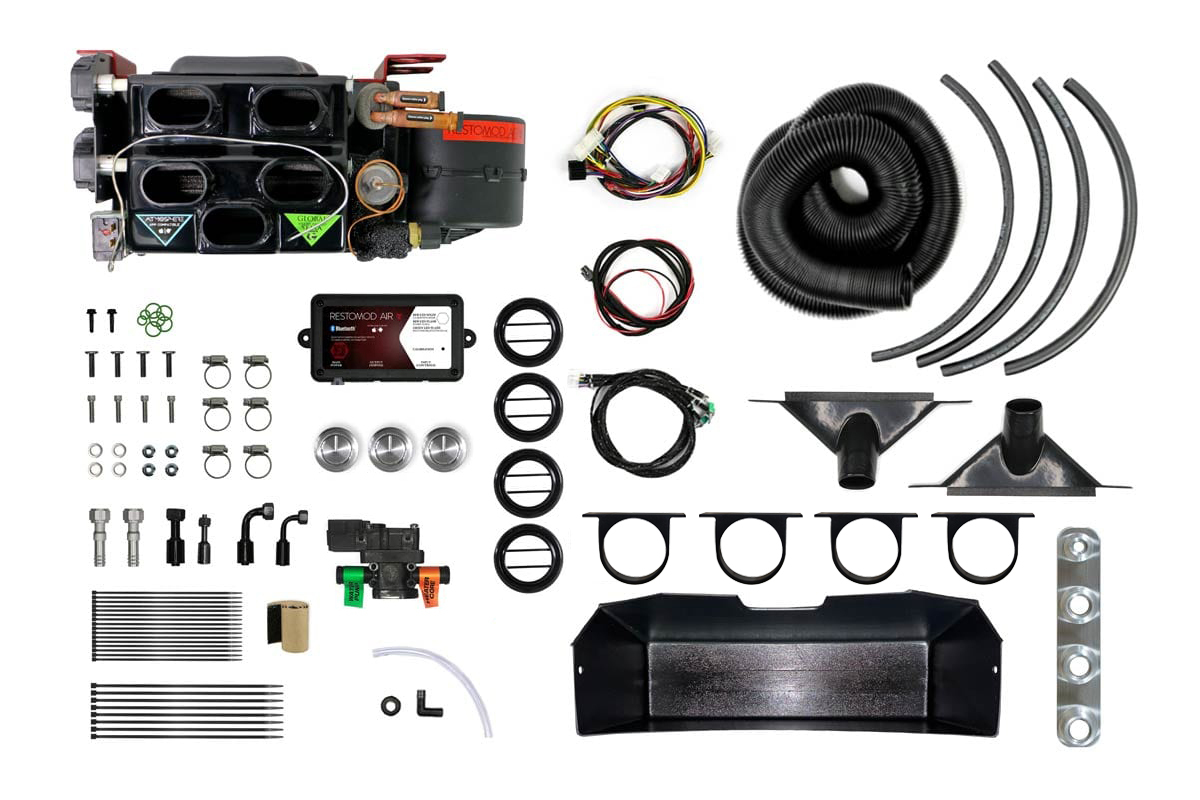

INTERIOR KIT
Evaporator Unit – Heat & Cool
Stealth A/C controller
Inline Bulkhead
Glovebox
ECU
Wiring harnesses
Screws + bolts + washers
Drain tube + elbow + grommet
Heater hose clamps
Heater + A/C hoses
Heater + A/C fittings
Vents
Screws + bolts + washers
Duct hose
Installation instructions
Tech support
3 year warranty
CONDENSER KIT
Condenser, Size 16 x 18.75 x 1
8 FT. #6 (Liquid) refrigerant hose (condenser to drier to evaporator)
4 FT. #8 (Discharge) refrigerant hose (compressor to condenser)
5 FT. #10 (Suction) refrigerant hose (compressor to evaporator)
#6, #8, #10 hose mounting clamps
Tie wraps
(4) flexible firewall grommets
Mineral Oil (O’ring fitting lube)
Large Capacity Receiver/Drier (6” X 2.5”)
HI/Low Safety Pressure Switch
(4) Universal Condenser Mounting Brackets
Electrical connectors
Condenser/ Drier mounting hardware
(2) #6 Liquid Hose Straight Fittings (black)
(4) #6 Liquid Hose 90 degree Fittings (black)
(1) #8 Discharge Hose Straight Fitting (black)
(1) #8 Discharge Hose 90 degree Fitting (black)
(1) #8 Discharge Hose 90 degree w/ R134a Charge Port Fitting (black)
(1) #10 Suction Hose Straight Fitting (black)
(1) #10 Suction Hose 90 degree w/ R134a Charge Port Fitting (black)
O’Ring Bag kit
COMPRESSOR
Cast Aluminum
Polished
Chrome
BRACKET
Big block
Small block
LS
THE
BANTAM - S
This guy features separate dash, defrost and floor modes, all within our innovation in a case. Our multi-mount system makes the installation of this custom A/C system a breeze. No need for fabricating brackets or visible bolt heads. Simply use the template, mark your firewall, weld studs/drill & use the included stainless hex head bolts.
The Bantam – S is even designed for easy upgrades. When we have new technology available, it is plug & play. You can even remove the blower motor, expansion valve & thermostat for servicing with the evaporator still in the vehicle.
STEALTH
A/C CONTROLLER
Your TruMOD Kit comes with Satin Stealth Classic A/C Controls. Precision CNC Machined 6061/T6 Aluminum these controls come with a Mylar decal that indicates what position you are in at all times.
MODEL
SPECIFIC PARTS
Your TruMOD Kit comes with some model-specific parts including the glovebox.
TEST FIT
YOUR RIDE
Still unsure this TruMOD A/C kit will fit? Sometimes you just need the peace of mind, we get that. All you have to do is order the mock box, pay the refundable deposit, test it in your vehicle and ship it back when you’re done.
