1955-1959 Chevy Truck TruMOD Air Conditioning Kit

$1,300.00$2,124.00

The 1955-59 (Late 55) Chevy Truck TruMOD A/C Kit uses the Ultra-Compact Climate Control System with A/C & Heat with Infinite Blend between Dash, Defrost, and Floor. The Bantam-S A/C system is designed for a flat firewall installation and is the top of the line, the most stylish, most powerful, and toughest aftermarket A/C system.

Clear
SKU: 1955-1959 Chevy Truck Custom Fit Categories: , , , , Tags: , ,
Description
BANTAM S TOP CUT OUT

1955-59
CHEVY TRUCK

The 1955-59 Chevy Truck TruMOD A/C Kit uses the Ultra-Compact Climate Control System with A/C & Heat with Infinite Blend between Dash, Defrost, and Floor. The Bantam-S A/C system is designed for a flat firewall installation and is the top of the line, the most stylish, most powerful, and toughest aftermarket A/C system.

TruMOD air conditioning kits are what we recommend for your vehicle. TruMOD Kits may have some model specific parts, but you have the ability to heavily customize your installation. TruMOD A/C Kits are designed for the vehicle that has a smoothed firewall. This allows the use of our multi-mount system for you to keep that perfectly smooth firewall using either the welded options for body phase or bolted options for completed (painted) cars.

Building your 1955-1959 Chevy Truck Trumod A/C kit is simple. All you have to do it choose your interior kit, condenser kit, optional compressor, and optional compressor bracket.

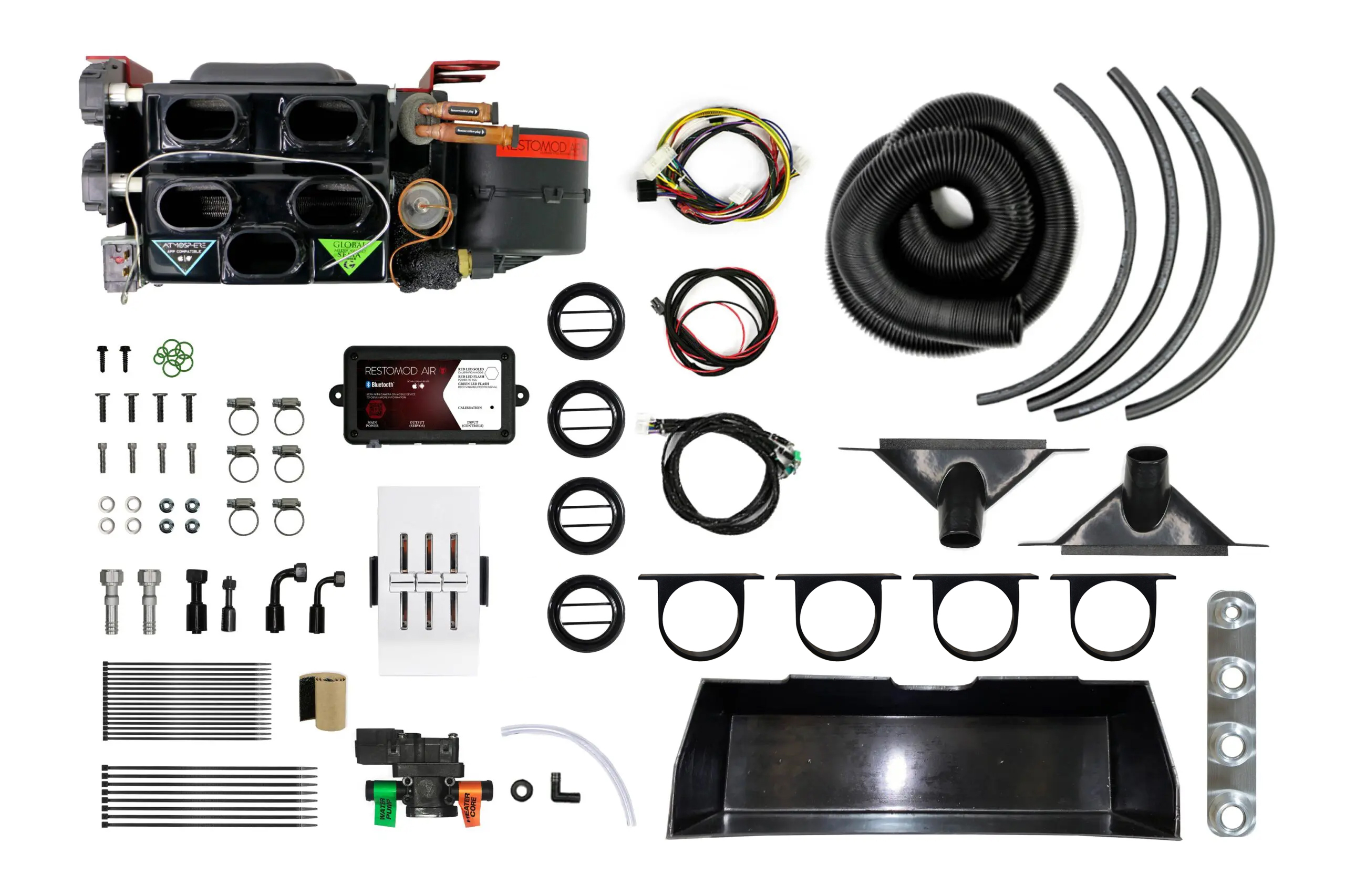

INTERIOR KIT

Evaporator Unit – Heat & Cool

Stealth A/C controller

Inline Bulkhead

Glovebox

ECU

Wiring harnesses

Screws + bolts + washers

Drain tube + elbow + grommet

Heater hose clamps

Heater + A/C hoses

Heater + A/C fittings

Vents

Screws + bolts + washers

Duct hose

Installation instructions

Tech support

3 year warranty

55 59 CHEVY TRUCK TRUMOD GEN 3 INTERIOR

CONDENSER KIT

Condenser, Size 18.5 x 15.5 x 1

8 FT. #6 (Liquid) refrigerant hose (condenser to drier to evaporator)

4 FT. #8 (Discharge) refrigerant hose (compressor to condenser)

5 FT. #10 (Suction) refrigerant hose (compressor to evaporator)

#6, #8, #10 hose mounting clamps

Tie wraps

(4) flexible firewall grommets

Mineral Oil (O’ring fitting lube)

Large Capacity Receiver/Drier (6” X 2.5”)

HI/Low Safety Pressure Switch

(4) Universal Condenser Mounting Brackets

Electrical connectors

Condenser/ Drier mounting hardware

(2) #6 Liquid Hose Straight Fittings (black)

(4) #6 Liquid Hose 90 degree Fittings (black)

(1) #8 Discharge Hose Straight Fitting (black)

(1) #8 Discharge Hose 90 degree Fitting (black)

(1) #8 Discharge Hose 90 degree w/ R134a Charge Port Fitting (black)

(1) #10 Suction Hose Straight Fitting (black)

(1) #10 Suction Hose 90 degree w/ R134a Charge Port Fitting (black)

O’Ring Bag kit

1955 59 CHEVY CUSTOM FIT CONDENSER KIT

COMPRESSOR

Cast Aluminum

Polished

Chrome

BRACKET

Big block

Small block

LS

COMPRESSOR6 201

THE
BANTAM - S

This guy features separate dash, defrost and floor modes, all within our innovation in a case. Our multi-mount system makes the installation of this custom A/C system a breeze. No need for fabricating brackets or visible bolt heads. Simply use the template, mark your firewall, weld studs/drill & use the included stainless hex head bolts.

The Bantam – S is even designed for easy upgrades. When we have new technology available, it is plug & play. You can even remove the blower motor, expansion valve & thermostat for servicing with the evaporator still in the vehicle.

BANTAM S CUT OUT GEN III ELECTRONICS
BANTAM S SPECS FOR WEB

STEALTH
A/C CONTROLLER

Your TruMOD Kit comes with Satin Stealth Classic A/C Controls. Precision CNC Machined 6061/T6 Aluminum these controls come with a Mylar decal that indicates what position you are in at all times.

STEALTH CONTROL FOR TRUMODS

CUSTOM
FIT PARTS

Your TruMOD A/C kit comes with glovebox, universal condenser brackets, custom vents, vent adapters, and more.

55 59 CHEVY GLOVEBOX

TEST FIT
YOUR RIDE

Still unsure this TruMOD A/C kit will fit? Sometimes you just need the peace of mind, we get that. All you have to do is order the mock box, pay the refundable deposit, test it in your vehicle and ship it back when you’re done.

MOCK UP BOXES BANTAM
